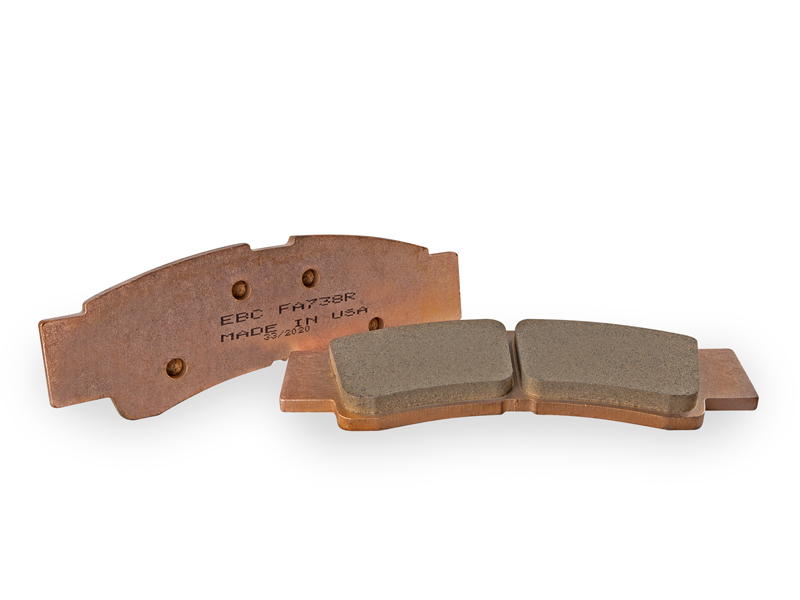

For the ultimate durability EBC presents it’s “R” series high density ATV & dirt sintered series pads. A sintered copper material made in our own USA facility, the “R” Series of heavy duty ATV and moto-x pads have become an aftermarket standard offering high durability, high resistance to contamination by mud, water, sand and grit etc. offering reduced disc damage and long pad life.
ATV & Dirt Sintered Pads are cast in UK, machined in the UK, painted in the UK and then assembled in the UK.
Based on +2500 Reviews

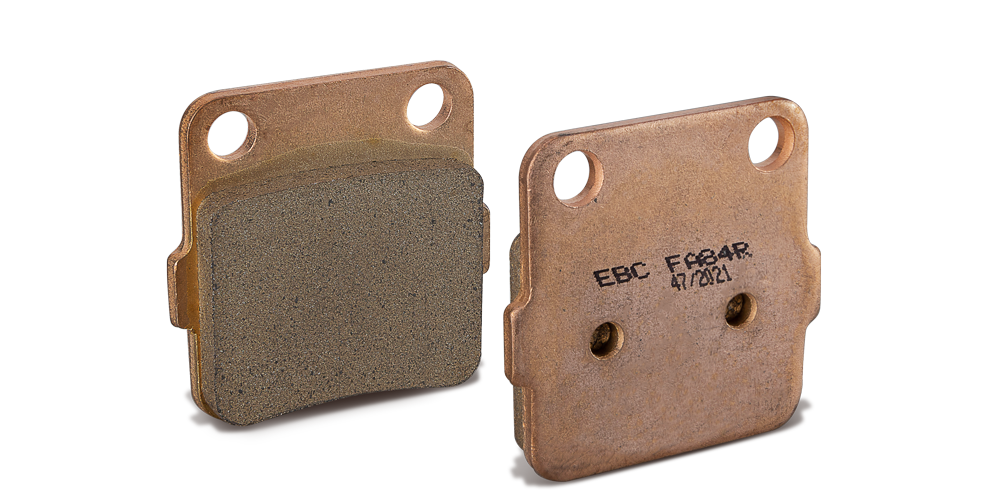

ATV & Dirt Sintered Pads

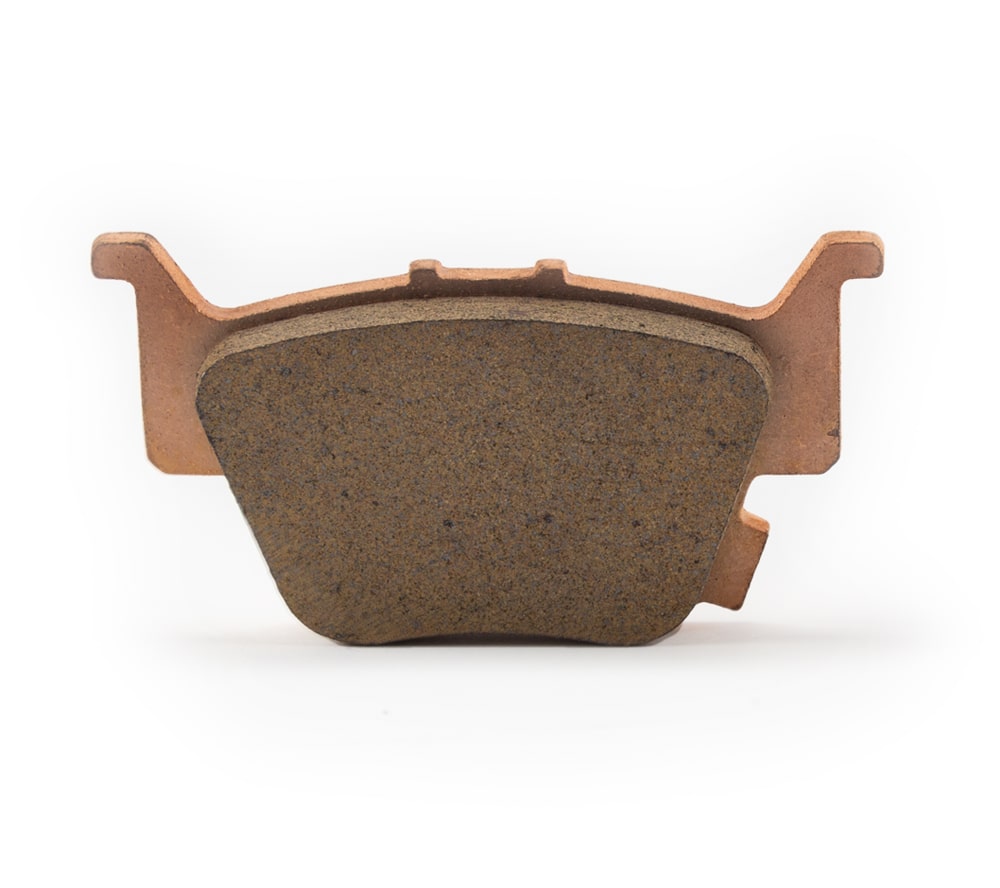

Many of us enjoy riding off road with trying to be Malcolm Smith and getting the brakes red hot. For that group the ATV Sintered R series pads are an ideal choice for Off Road Riding. R Series pads are a sintered copper alloy pad made in our USA sintered production plant to deliver a medium to high friction pad, at an attractive price point that lasts well in all conditions of wet, mud water or sand.
Sintered brakes are a very modern and interesting technology, click here to read more about EBC sintered brakes. ATV Sintered R Series pads are equally well applied to two wheel and four wheel machines and as such are very well liked amongst ATV riders especially due to the conditions on some rides where the rear ATV rotor hangs down in the mud and chews through lower quality pads in a weekend. The EBC series pads are available for all modern ATV and Moto X bikes and are priced well below original parts.

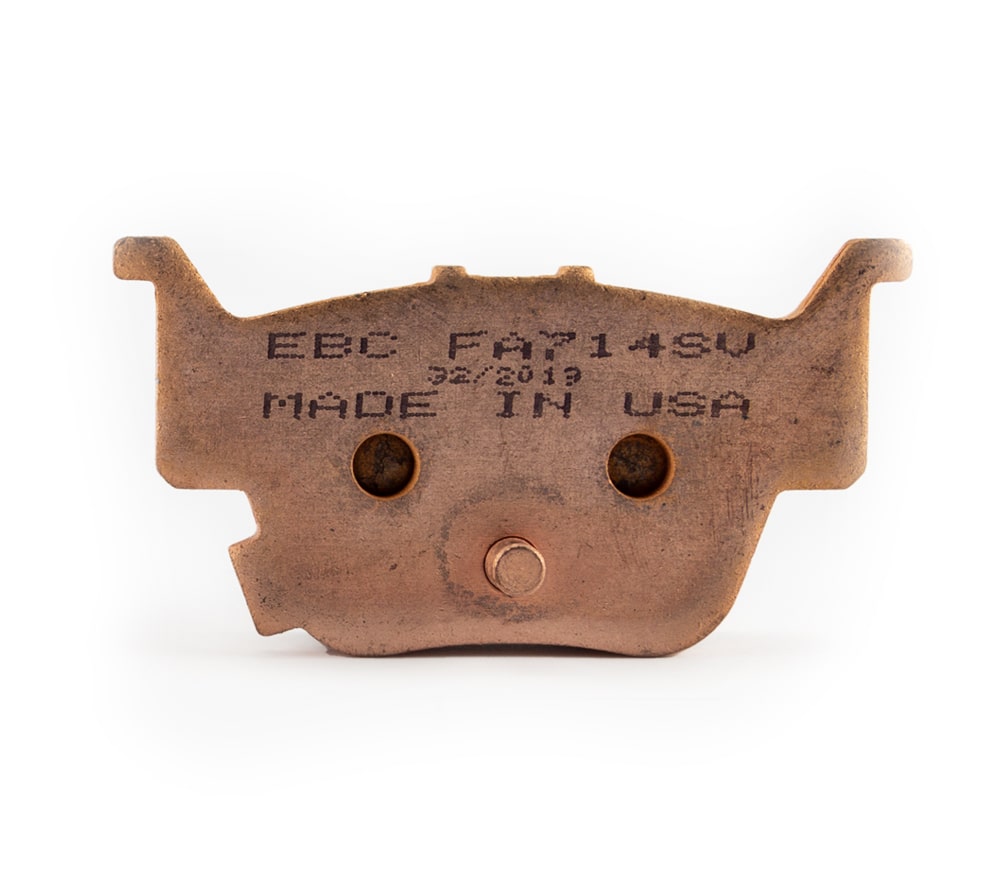

R Series pads are also designed for minimum rotor abrasion and will not damage your bikes brake rotors. If you have a wear life problem with an ATV EBC does make an even longer lasting pad with its SV Series Severe Duty range, shown on this page. The SV Series Severe duty brake pad is a High density sintered copper alloy for longest possible life in utility applications on ATV, especially in wet, mud, dust and dirt conditions.
Balanced is Better™
Sintered copper brakes are made by one of two processes, pressure sintering in a vacuum furnace or sintering through a belt furnace in a controlled atmosphere. The steel backing plates for the brake pads are copper coated and a preformed sintered copper “Puck” is located onto pips in the plate (either male or female) and the parts are passed through a furnace. At a pre-determined temperature the copper coating under the pad puck melts and fused the puck and plate together.
Sintering is a very exact process and the EBC expertise has made it a world leader in such technology and gained it numerous OE contracts. In the aftermarket EBC continues to offer sintered brakes for applications requiring longer life and higher heat performance and organic pads for sport and general purpose use. Both work well in their respective markets and have a place in the industry, elsewhere on this website we can explain the merits of each compound type and assist you in choosing what is right for your riding requirements.
Engineered, manufactured & assembled in the UK
ATV & Dirt Sintered Pads are cast in UK, machined in the UK, painted in the UK and then assembled in the UK. Reinforcing the EBC philosophy of providing quality British made braking products yet at affordable prices.
With so many pads in this segment of the market being bought in from far East, surely this is the ultimate testament to EBC’s devotion to quality. EBC are, and will always be a true champion of Great British engineering.
