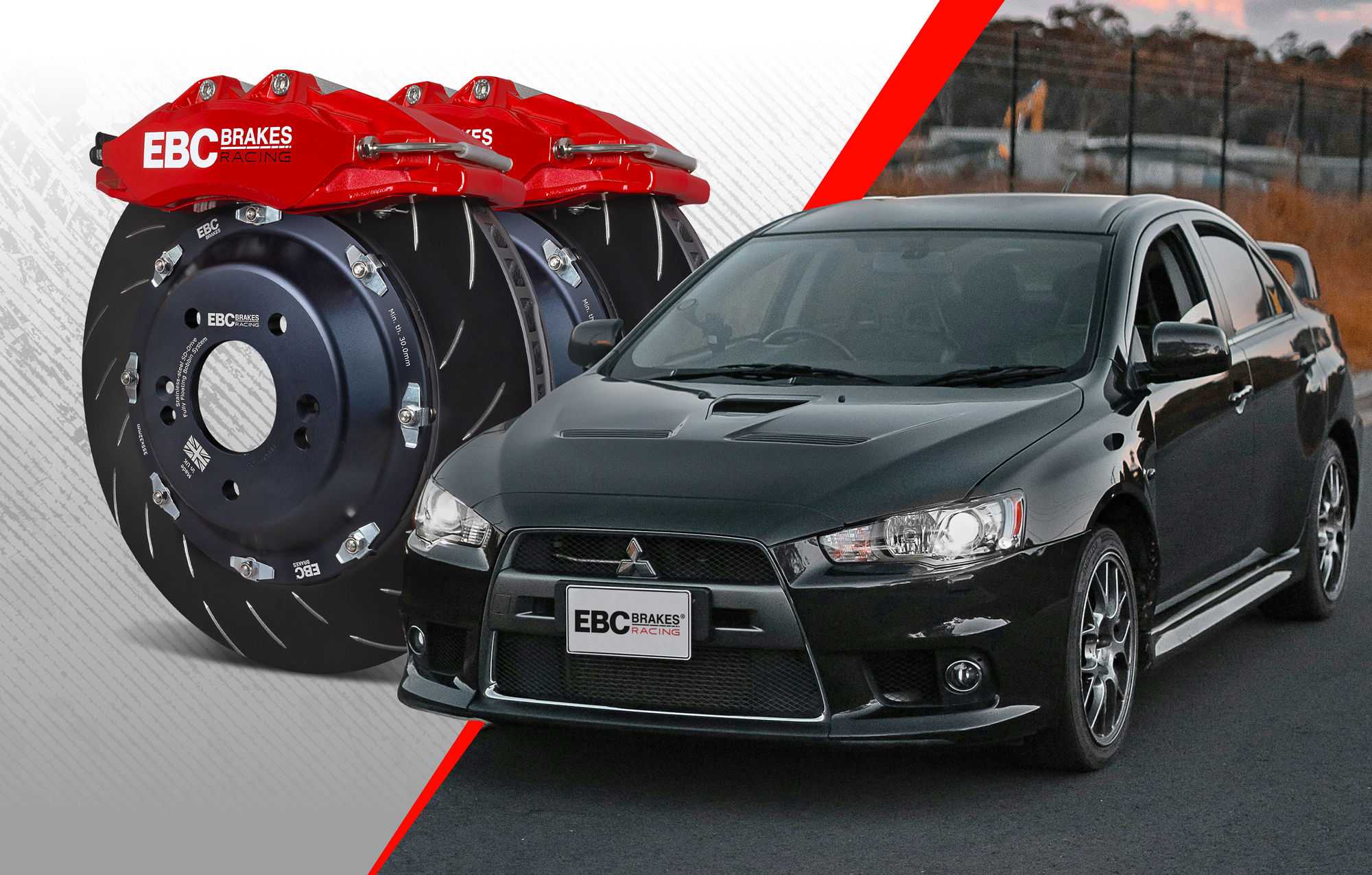

All-new six-piston big brake kit offers one giant leap forwards for the performance braking market
EBC Brakes Racing’s Apollo Balanced Big Brake Kits represent the ultimate upgrade when it comes to improving stopping power.
Complete with stunning, British-engineered six-piston calipers and all the hardware you need to completely replace all equivalent components of your vehicle’s stock braking system, these complete kits give a firmer and more responsive brake pedal feel and allow you to drive much longer without the onset of brake fade.
Unlike other ‘big brake kits’ on the market – which solely supply the parts for the front axle – every EBC Balanced Big Brake Kit is a full-vehicle upgrade and is supplied complete with matching friction rear pads to fit the original caliper, as well as braided brake lines all-round, ensuring a totally balanced brake upgrade that delivers maximum braking performance.
These kits are now available for the Mitsubishi Lancer Evolution X – a highly tuneable, rally-bred super saloon that has become synonymous with fast road and track driving, making it the ideal vehicle to benefit from such an upgrade.
Notes
– Dimensions: 355x32mm
– Part Numbers:
- BBK052RED-1 (Racing Red)
- BBK052BLU-1 (Storm Shadow Blue)
- BBK052BLK-1 (Stealth Black)
- BBK052YEL-1 (Luminous Yellow)
– Applications:
Suitable for the following vehicles:
- Mitsubishi Lancer Evolution X (2008-2016)
For a complete list of vehicle applications, please visit your nearest EBC Brakes dealer.
Apollo-Series 6-Piston Calipers
- EBC’s lightweight-yet-strong aluminium 6-piston brake caliper
- Two-piece bolted design that incorporates high-tensile 12.9-grade steel bolts for reinforcement of the caliper bridge section (computer FEA analysis shows that this offers significant improvements in caliper stiffness compared to a monobloc design)
- Machined from heat-treated low-pressure castings (this offers a noticeable performance advantage over conventional gravity cast calipers, exhibiting higher overall strength and a comparable caliper body stiffness to forging)
- High-temperature fluid seals coupled with full boot-type dust seals give maximum protection against road grime and debris
- Lightweight, hard-anodised aluminium staggered pistons with serrated/castellated piston noses that reduce heat transfer into the braking hydraulics
- Every single brake caliper pressure tested to 2,500psi
- Full stainless-steel hardware and fittings, providing durability and longevity – this caliper will never rust
- Uses standard pad shapes, giving choice when selecting brake pads
- Rather than a powder-coated finish, all Apollo calipers use an advanced high-temperature Teflon™ polyester coating process to ensure they look great for much longer. Currently available in Stealth Black, Storm Shadow Blue, Luminous Yellow and Racing Red
Fully-Floating Two-Piece Discs
- Fully-floating 355x32mm two-piece discs that allow the outer ring to expand freely in response to heat (this reduces stress which in turn extends disc life and reduces the tendency for disc cracking during extreme use)
- Drive bobbins machined from a single piece of stainless steel giving maximum strength and corrosion resistance (this reduces maintenance requirements and ensures the outer ring continues to float freely over time)
- Disc rings feature 48 directional internal curved vanes for improved cooling
- Unique ‘Swept Groove’ slot design for effective evacuation of braking dust and gases whilst ensuring good initial bite on brake application
- Now featuring the latest thermic black corrosion-resistant finish – the very latest in rust prevention
Bluestuff™ NDX Performance Brake Pads
- Every EBC Balanced Big Brake Kit is supplied with EBC Bluestuff™ pads for both front and rear axles. Unlike other ‘big brake kits’, which solely supply parts for the front axle, EBC includes matching Bluestuff™ brake pads for the rear axle at zero additional cost. This ensures your vehicle ends up with an optimum brake balance and the rear axle shares a portion of the braking load, giving improved control under braking and shorter overall stopping distances
- Now road legal in most markets, Bluestuff™ NDX combines excellent cold bite with the capability to perform well in short spells of track/race conditions
SG Swept & Grooved Solid Rear Discs
- Disc pattern matches those of the front floating discs, designed for effective evacuation of braking dust and gases whilst ensuring good initial bite on brake application
Stainless Steel Braided Brake Lines
- Every kit is supplied with EBC Brake’s stainless-steel braided brake lines front and rear. Also including rear lines is another market first from EBC and one that ensures that every EBC Balanced Big Brake Kit includes every single piece of hardware you need to result in a truly balanced performance brake upgrade
- Every hose has a stainless-steel braided exterior that prevents a phenomenon known as ‘ballooning’, this braided exterior prevents the spongey feel of OE rubber lines and provides greater precision and feel under braking
Super DOT 4 Brake Fluid
- Every kit is supplied with 1 litre of BF307+ super DOT 4 brake fluid. This fluid has a 310°C boiling point – a significantly higher boiling point than standard DOT 5.1 fluid
- Having such a high boiling point gives the braking system exceptional endurance, allowing you to push hard for extended periods without heat soak causing the fluid to boil and resulting in fade
Availability
Available now. Please click here to find your local EBC stockist and see a full list of applications.
